Analyze usage insights

This page describes how to use the usage insights to analyze your billable usage for specific databases. You can break down this data by dimensions such as collections, collection groups, or namespaces (specific to Datastore mode) over a custom time period. The usage insights metrics displayed vary based on the edition or mode:

Edition Metrics
Standard
  • Reads
  • Writes (includes deletes)
  • TTL deletes
Enterprise
  • Reads
  • Writes
  • TTL deletes
  • Event

Usage insights overview

Use the usage insights dashboard to monitor usage for specific databases. This dashboard helps you with:

  • Monitor granular usage: Track your billable operations broken down by dimensions like collection, collectionGroup, or namespace.
  • Optimize costs: Identify high-billed usage to determine where you can optimize data structures or queries and lower your overall bill.
  • Track historical trends: Monitor how your billable usage statistics change over specific timeframes.

Required roles

To get the permission that you need to view the usage insights dashboard, ask your administrator to grant you the Datastore Viewer

(roles/datastore.viewer) IAM role on your project.

This predefined role contains the datastore.insights.get permission, which is required to view the usage insights dashboard.

You might also be able to get this permission with custom roles or other predefined roles.

Usage insights dashboard

The Usage insights dashboard is organized into two primary sections:

  • Total Usage: Displays aggregated metrics (Reads, Writes, TTL Deletes) for the entire database.
  • GroupBy Usage: Shows metrics broken down by the top 100 dimensions and is grouped by collection, collection group, or namespaces.

Total Usage and GroupBy metrics

It is important to note that the sum of metrics in the GroupBy section might not match the metric displayed in the Total Usage section. This variance is expected due to the following factors:

  • GroupBy Limits (Top 100): The GroupBy section is restricted to itemizing usage for only the top 100 collections, collection groups, or namespaces. Usage generated by less active dimensions contributes to the Total Usage figure but is not individually listed in the GroupBy usage metrics.
  • Sampling for Wide Operations: For requests impacting a large number of collections (for example, joins across multiple collections, ListCollectionIds, ListDocuments, kindless queries), usage insights may sample collections, prioritizing those with the highest usage. As a result, not all affected collections are included in the GroupBy usage metrics.

  • Reserved Names: Datastore mode reserves names prefixed with double underscores (__*__) for internal metadata. Usage related to these reserved names contributes to total usage but is not included in the GroupBy usage metrics.

  • Datastore Mode Statistics Entities: Statistics entities used in Datastore mode are included in total usage but don't contribute to the GroupBy usage metrics.

GroupBy dimensions

The GroupBy section organizes usage metrics based on dimensions determined by the enabled APIs:

  • Namespace: Available when the Datastore API is enabled.
  • Kind: Generally available across all API configurations.

Usage insights data

Usage insights on the Google Cloud console displays data sourced from the following API methods:

  • queryTopAggregatedInsightsData
  • queryTopTimeseriesInsightsData
Field name Details
Collection Name

CollectionGroup Name

Namespace value		 The value corresponding to the usage dimension for which the usage data is aggregated. This could be a collection name, collection group name, namespace name.
Total Read Operations Total number of read operations. Applicable only to Standard edition.
Total Write Operations Total number of write operations. Includes Delete operations as well. Applicable only to Standard edition.
Total TTL Delete Operations Total number of TTL Delete operations. Applicable only to Standard edition.
Total Read Bytes Total number of bytes scanned.
Total Scanned Entities Count Total number of entities scanned.
Total Scanned Index Entries Count Total number of index entries scanned.
Total Written Entities Count Total number of entities written.
Total Written Index Entries Count Total number of index entries written.
Total Sum of Entity Size written Total entity write size in bytes.

Limitations

  • Streaming queries that contribute to billable reads and writes are not tracked as part of the API response.
  • Usage insights for Admin operations (that contribute to billable reads and writes) like import/export, bulk delete, restore, clone, and index builds in Enterprise edition are not supported.
  • Network egress and storage billing are not supported.

Pricing

There's no additional cost for usage insights.

View usage insights

To view usage insights for a Firestore in Datastore mode database, open the database's Usage Insights pane in the Google Cloud console.

  1. In the Google Cloud console, go to the Databases page.

    Go to Databases

  2. From the list of databases, select a database.

  3. In the navigation menu, click Usage Insights.

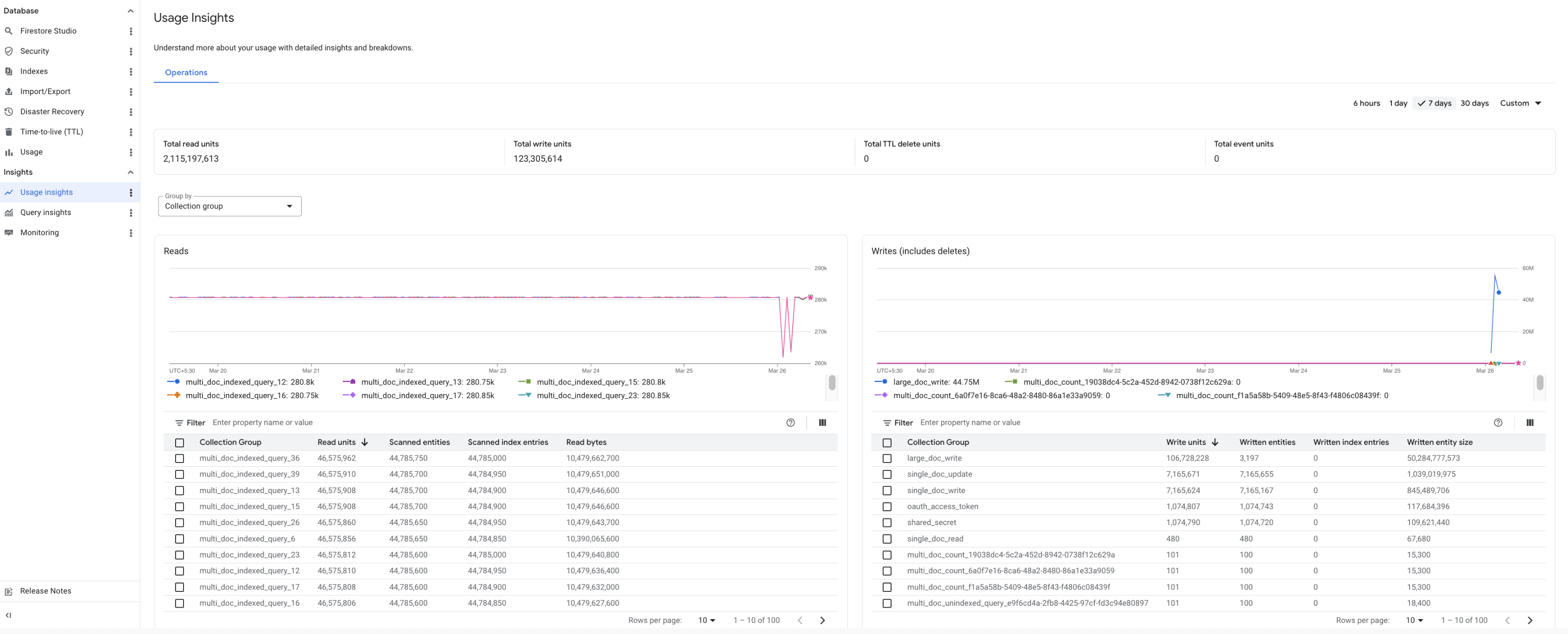

    The usage insights for a Native mode database in the Google Cloud console

    Use the Group By drop-down to view usage insights for a collection, collectionGroup, or namespace. You can view usage insights data up to the last 45 days.
