About Hive Catalogs in Lakehouse runtime catalog

The Lakehouse runtime catalog is a serverless, unified metastore for Lakehouse for Apache Iceberg that simplifies managing self-hosted Hive Metastores. This single, fully managed metadata layer eliminates the need for separate metadata stores for open-source workloads. It lets you seamlessly share data across Apache Spark, Apache Hive, and BigQuery.

Optimized for Apache Spark ExternalCatalog compatibility, this integration supports a subset of the Hive Metastore interface. To see if your workloads depend on unsupported features like transactions, compactions, or Kerberos, review the feature comparison and limitations.

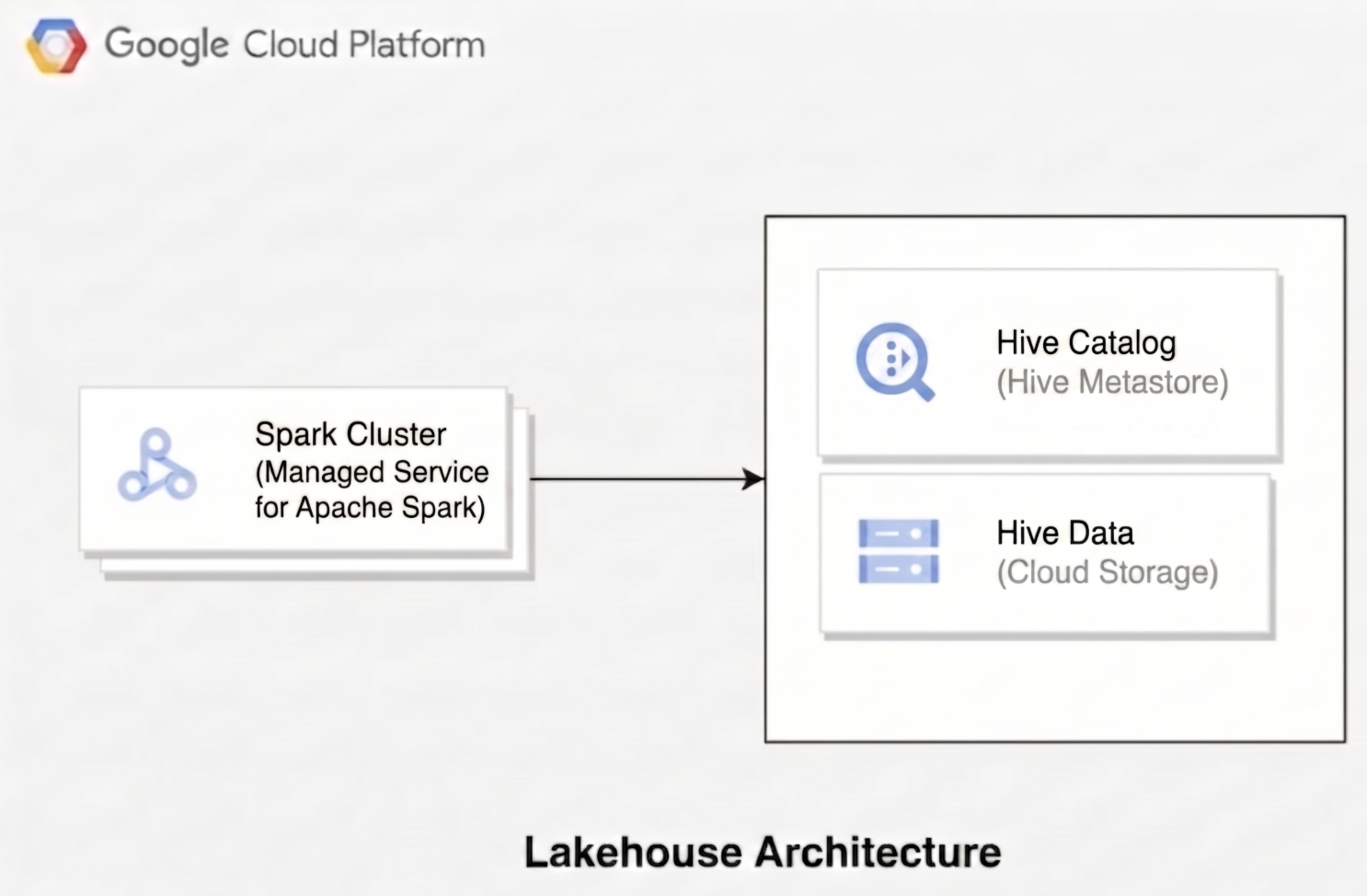

How Hive integrates with the Lakehouse runtime catalog

Managed Service for Apache Spark images are preconfigured with the necessary custom IMetastoreClient and other required dependencies to simplify using the Lakehouse runtime catalog with your Spark jobs. The following sequence describes how Spark connects to Lakehouse runtime catalog.

  1. Apache Spark connects to external metadata catalogs by using the Apache Hive IMetastoreClient interface.
  2. The Lakehouse runtime catalog uses a custom IMetastoreClient to provide a managed metastore service for Spark and Hive metadata.
  3. Managed Service for Apache Spark images include the required client and dependencies to integrate with the Lakehouse runtime catalog.

After setup, you can query a subset of tables created from Spark in BigQuery. It supports specific data type mappings between Spark and BigQuery, and various storage formats, such as Parquet, ORC, and Avro.

Feature comparison with Hive Metastore

The following table compares entities and operations in Hive Metastore and Lakehouse.

Entity or operation Hive Metastore Lakehouse runtime catalog
Catalog ✅ ✅
Database (create, delete, update) ✅ ✅
Table (create, delete, update) ✅ ✅
Partition (add, drop, update) ✅ ✅
User-defined functions ✅ ❌
Bucketing columns ✅ ❌
Skewed columns ✅ ❌
Table column stats ✅ ❌
Partition column stats ✅ ❌
Key constraints ✅ ❌
Primary keys ✅ ❌
Master keys ✅ ❌
Delegation tokens (Kerberos) ✅ ❌
Workload manager resource plans ✅ ❌
Transactions and compactions ✅ ❌
Table privileges ✅ ✅ (through Identity and Access Management (IAM))
Column privileges ✅ ❌
Partition privileges ✅ ✅ (through IAM)
Roles ✅ ❌
